AXIS PRO drawer slides are adapted to all types of furniture. They work well in kitchen, bathroom and living room furniture as well as wardrobes. With three heights, you will be able to configure your drawers as you wish.

The new, flat design of the sides is even more practical and enables maximum efficiency.

Length of slides/sides: 300mm | 350mm | 400mm | 450mm | 500mm

Side height: A – 86mm | B – 120mm | C – 168mm| D- 200mm

Color: White

Load capacity: 40 kg

AxisPro drawer slides are characterized by full extraction and a certificate for 60,000 openings.

Side thickness is only 14mm.

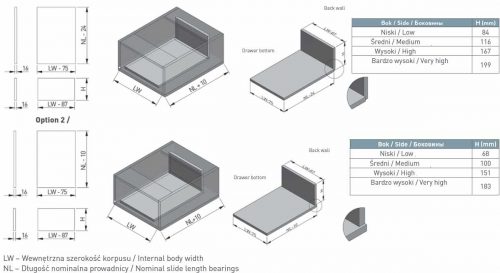

For the bottom and back side, dimensions watch image 5

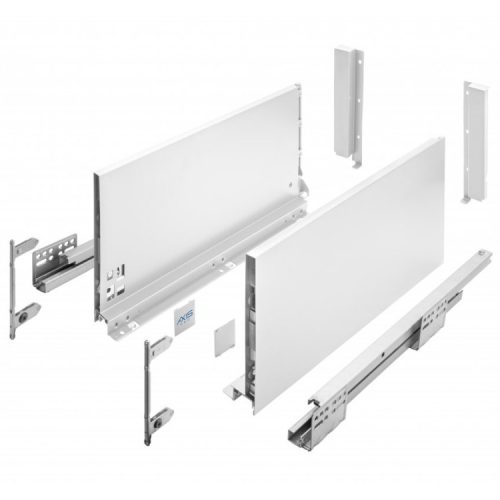

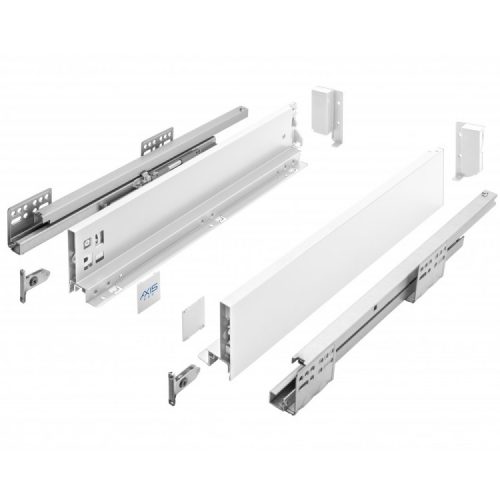

The set contains 2x guide, 2x side, 2x rear side mount, 2x cheek mount, cover caps and screws.
